Change Engine Speeds

Push hand throttle (A) forward to increase speed.

Depress foot throttle (B) to increase engine speed temporarily above hand throttle setting.

NOTE: Use hand throttle only when operating in the field. Do not use hand throttle while transporting vehicle.

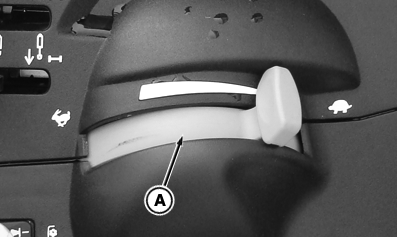

A-Hand throttle

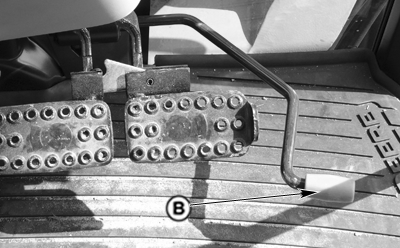

B-Foot throttle

AJ20558,0000297 -19-31AUG09-1/1
