Operate External Position Control-If Equipped

CAUTION: Avoid possible injury or death from tractor movement. Put transmission in PARK before using external raise and lower switches. Stay clear of rotating drive lines and interference points.

Press and hold switch to move rear hitch:

Implement is raised when top switch is held.

Implement is lowered when bottom switch is held.

NOTE: External position control (fender mounted) raises or lowers rear hitch at a slower rate and ignores height/depth settings. External position control is disabled when electrohydraulic hitch control lever (C) is set in transport position.

Once the external position control switch is activated, the hitch will not respond to the movements of position control lever (C).

To reactivate the position control at lever (C), return to operator's station and place lever (C) in a position that corresponds to the actual hitch position, then actuate quick raise/lower buttons (E).

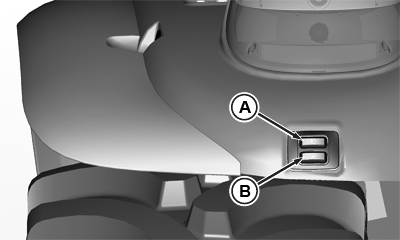

A-External raise switch
B-External lower switch

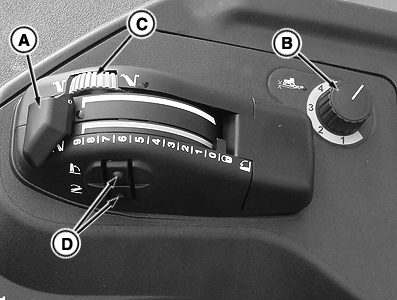

C-Position control lever
D-Control lever stop wheel
E-Quick raise/lower buttons

AJ20558,0000299 -19-31AUG09-1/1
