Attach Implements to 3-Point Hitch

CAUTION: Hitch movement can cause injury or death.

IMPORTANT: Ensure center link and lift link adjustments DO NOT cause implement contact with fenders.

NOTE: Engine must be running for 3-point hitch control to work.

Before attaching or detaching implement, place load/draft control (B) into lowest setting.

Use position control lever (A) to raise or lower implement. DO NOT use rear quick raise/lower buttons (D).

Be sure drawbar will not interfere. If necessary, move drawbar to fully retracted position or remove it. Check for any other potential interference.

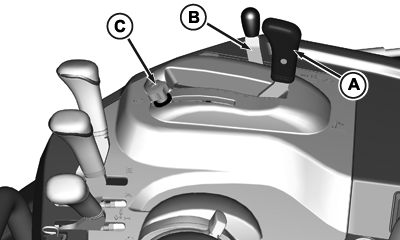

A-Hitch control lever

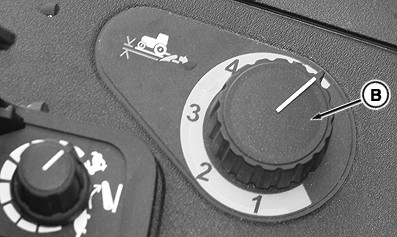

B-Draft control lever/knob
C-Hitch control lever stop wheel
D-Quick raise/lower buttons

AJ20558,000029A -19-02SEP09-1/3

CAUTION: To prevent unexpected movement of rear hitch, place draft sensing control in lowest position before attaching implement to hitch.

2. Slip draft links (C) over implement hitch pins (B) and retain with quick-lock pins.

3. Push tab (E) backward and lift locking clip (D) to release center link from transport hook.

4. Attach center link to implement top mast.

5. Adjust center link and lift links as necessary. See Level Hitch, in this section.

A-Implement
B-Implement hitch pins
C-Draft link

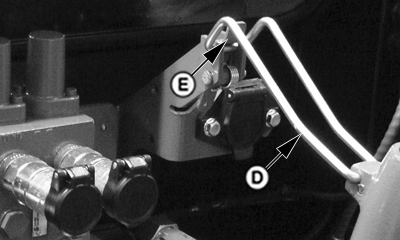

D-Center link locking clip
E-Tab

AJ20558,000029A -19-02SEP09-2/3

CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-point hitch, check full range of operation for interference, binding or PTO separation.

6. Start engine. Using position control lever, slowly raise and lower implement and check for interference.

NOTE: If equipped with electrohydraulic hitch, use quick raise/lower buttons or fender-mounted switches (A and B) to raise and lower implement and check for interference.

A-Raise switch
B-Lower switch

AJ20558,000029A -19-02SEP09-3/3
