Stop Engine

IMPORTANT: Certain engine parts are cooled by engine oil. Stopping a hot engine could cause damage by overheating or lack of lubrication.

1. Depress clutch pedal and brake pedals. Pull hand throttle (A) back to low idle.

2. Place range lever into neutral. Place speed shift lever in PARK position (C), and allow engine to idle for 2-5 minutes.

3. If equipped, place reverser lever into NEUTRAL.

4. Lower all equipment to the ground, put all selective control valve levers in NEUTRAL, and disengage PTO.

5. Turn key (B) to STOP and remove from switch.


A-Hand throttle
B-Ignition key
C-Speed lever in park position

RXA0104532
PULV004535

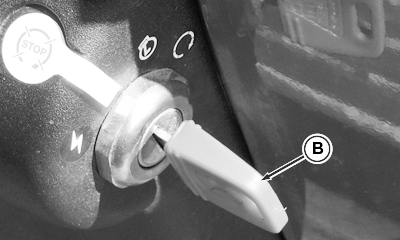

Key switch

PULV004545

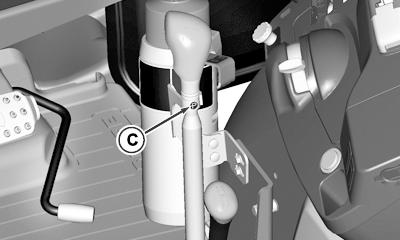

Speed lever in park position

AJ20558,000029A -19-31AUG09-1/1
