Operate SyncShuttle Plus™ Transmission

NOTE: No separate reverser lever mounted to left of steering wheel.

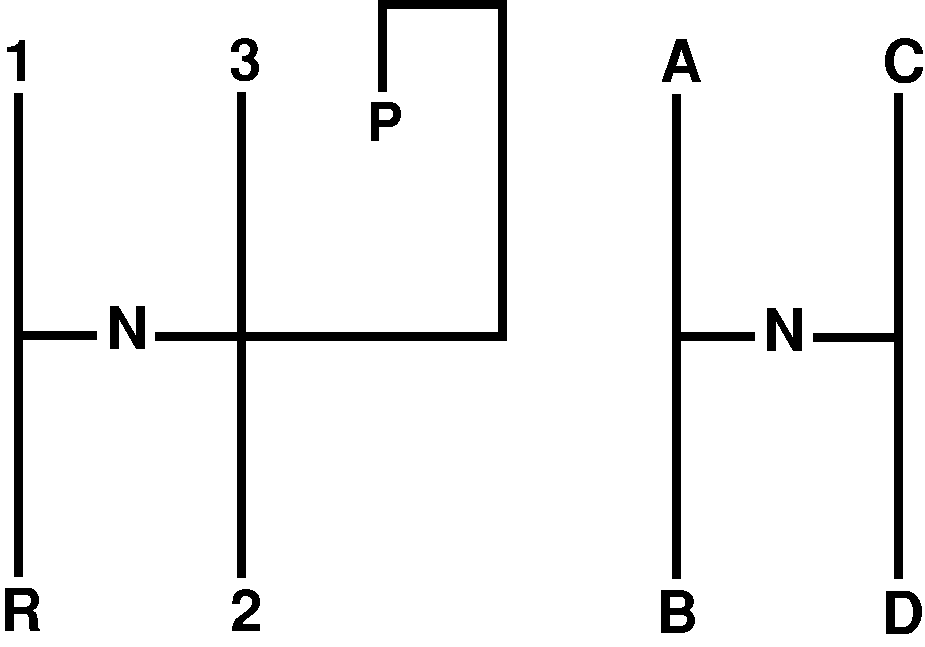

Speed shift lever (A) provides three forward travel speeds (1, 2, 3) and reverse.

Twelve forward and four reverse speeds are available when using speed and range shift levers.

NOTE: Slow speed gearing (creeper) is available on separate lever. It provides a fifth and sixth speed range.

Range shift lever must be in neutral position to shift into creeper.

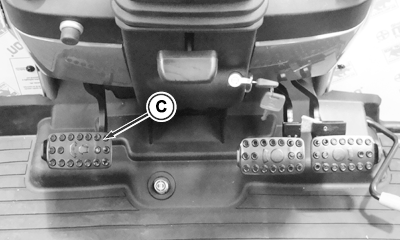

IMPORTANT: To prevent unnecessary clutch wear, never "ride" the clutch by resting a foot on the clutch pedal (C).

Speed (1, 2, 3) and direction shifts (forward and reverse) can be made on-the-go, without stopping. Release clutch pedal gradually to take up load smoothly.

Range (A, B, C and D) shift can be made after stopping.

NOTE: See Gauges and Indicator Lights, in Section 20 for instrument panel indicators.

A-Speed shift lever
B-Range shift lever
C-Clutch pedal

AJ20558,000029B -19-26AUG09-1/1
