Loader Auxiliary Driving Lights-If Equipped
LV9465

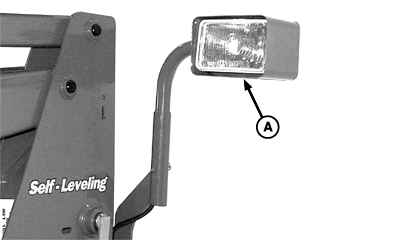

Loader auxiliary driving light assembly (left side shown)
LV9466

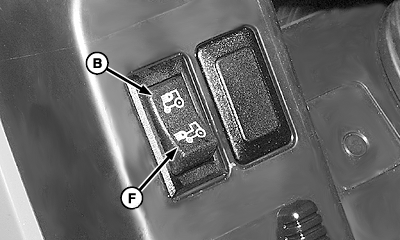

Loader auxiliary driving light switch


A-Loader auxiliary driving light assembly
B-Loader auxiliary driving lights on position
C-Work light position
D-Transport 1 position
E-Transport 2 position
F-Front grille headlight on position

Loader auxiliary driving lights can be used as an alternative for obscured driving headlights mounted in front grille.

NOTE: Loader auxiliary light arms swing toward loader frame for storage. Loader auxiliary driving lights are only available with loader.

Loader Auxiliary Driving Light Switch Main Light Switch Loader Auxiliary Driving Lights Grille Headlights
B - On C - Work On High Beam Off
  D - Transport 1 On High Beam Off
  E - Transport 2 On Low Beam Off
F - Off C - Work Off On High Beam
  D - Transport 1 Off On High Beam
  E - Transport 2 Off On Low Beam


PULV004470

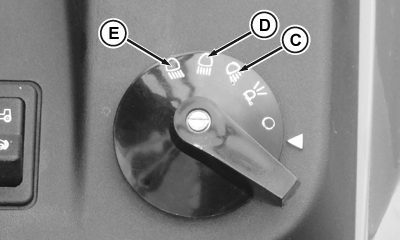

Tractor light switch

AJ20558,00002E2 -19-16JUN09-1/1
