Implement/Trailer Outlet

NOTE: Always use auxiliary light on towed implement when tractor lights are obscured.

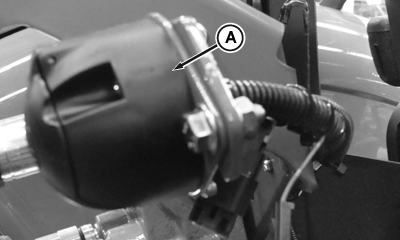

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements.

If implement harness is properly wired and connected to outlet, implement lights operate in conjunction with tractor warning and signal lights.

NOTE: Matching plug is available through your John Deere dealer.

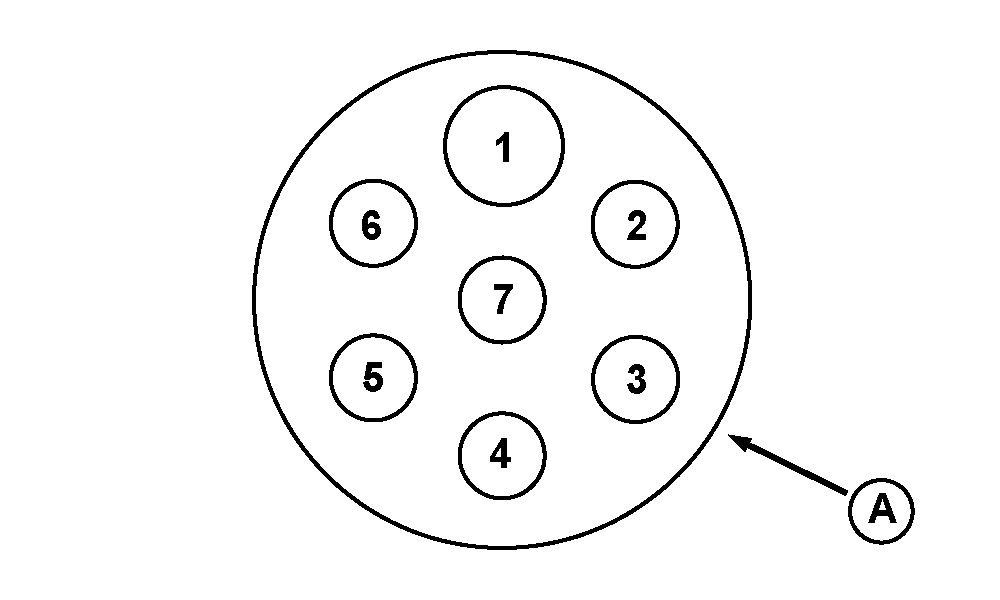

Terminal Function
1 Left Turn
2 Auxiliary Power
3 Ground
4 Right Turn
5 Left Tail Light
6 Brakes-If Equipped
7 Right Tail Light




A-Seven-terminal outlet

PULV004471
RW21249A

AJ20558,00002E3 -19-25MAY09-1/1
