Adjust Seat Armrests

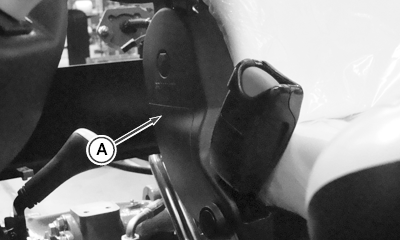

1. Pry plastic cover (A) away from seat.

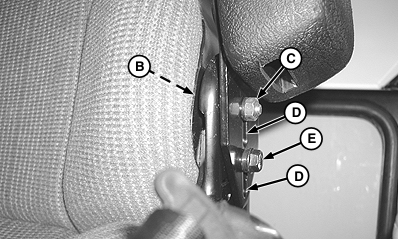

2. Loosen cap screws (B and E).

3. Slide armrest up or down to desired height, and tighten hardware.


A-Plastic cover
B-Cap screw
C-Nut
D-Adjustment slot
E-Cap screw

PULV004475
LV9045

AJ20558,00002E7 -19-31AUG09-1/1
