Before Starting the Engine

causym CAUTION: Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to thoroughly ventilate the area.

TS220

Engine exhaust fumes

AJ20558,00002E9 -19-02SEP09-1/4

1. Transmission Controls: Put speed shift lever (A) in PARK and range shift lever (B) in NEUTRAL.

If equipped, put reverser lever (C) in NEUTRAL.


A-Speed shift lever
B-Range shift lever
C-Reverser lever

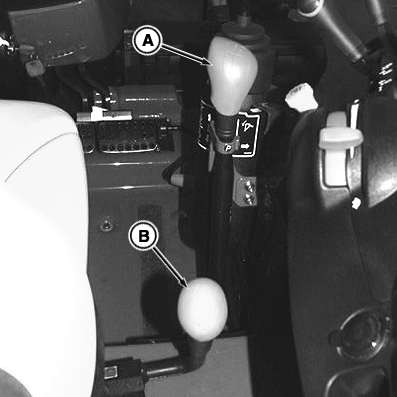

RXA0104534

Speed shift lever and range shift lever

PULV004928

PowrReverser™ lever

AJ20558,00002E9 -19-02SEP09-2/4

2. Disengage PTO: Push PTO engagement switch (B) down then place PTO speed shift lever (A) in neutral.

NOTE: Do not engage or disengage PTO using PTO speed shift lever (A).


A-PTO speed shift lever
B-PTO engagement switch

PULV004950

OOS

AJ20558,00002E9 -19-02SEP09-3/4

3. Push hitch position control lever (A) forward to lower equipment to the ground.

4. Turn key to RUN position and check gauges and indicator lights.


A-Hitch control lever

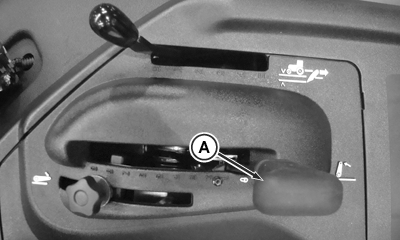

PULV004490

Mechanical hitch-OOS

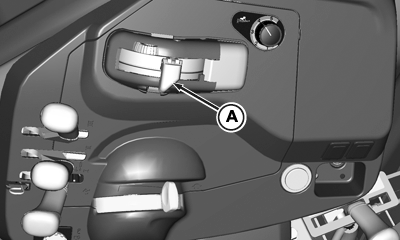

PULV004951

Electrohydraulic hitch-OOS

AJ20558,00002E9 -19-02SEP09-4/4
