Cold Weather Start Aid-If Equipped

NOTE: Hydraulic and steering functions may be slow until hydraulic oil warms up to operating temperature.

causym CAUTION: DO NOT use starting fluid.

Tractors can be equipped with an optional intake air heater system. An electric heating element (A) warms the intake air.

1. To activate cold weather starting device, turn key (B) to RUN position, push in and hold:

  • 10 or 15 seconds for temperatures above 0 °C (32 °F)
  • 30 seconds for temperatures below 0 °C (32 °F)

2. Depress clutch pedal and turn key to START position.

3. If engine runs rough, press in on key to reactivate cold weather starting device until engine runs smoothly.

4. Idle engine until it warms to operating temperature.

Temperature Below 0 °C (32 °F) Temperature Above 30 °C (89.6 °F)
1000 rpm 900 rpm



NOTE: For temperature ranging 0°C - 30°C , run engine between 850 rpm and 1000 rpm.

PULV000078
PULV004535

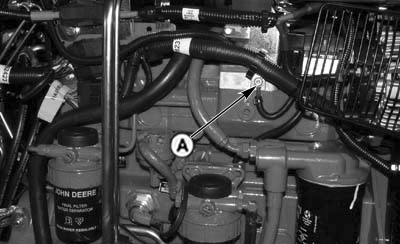

A-Electric heating element
B-Ignition key

AJ20558,00002EB -19-06JUL09-1/1
