Operate PowrReverser™ Transmission

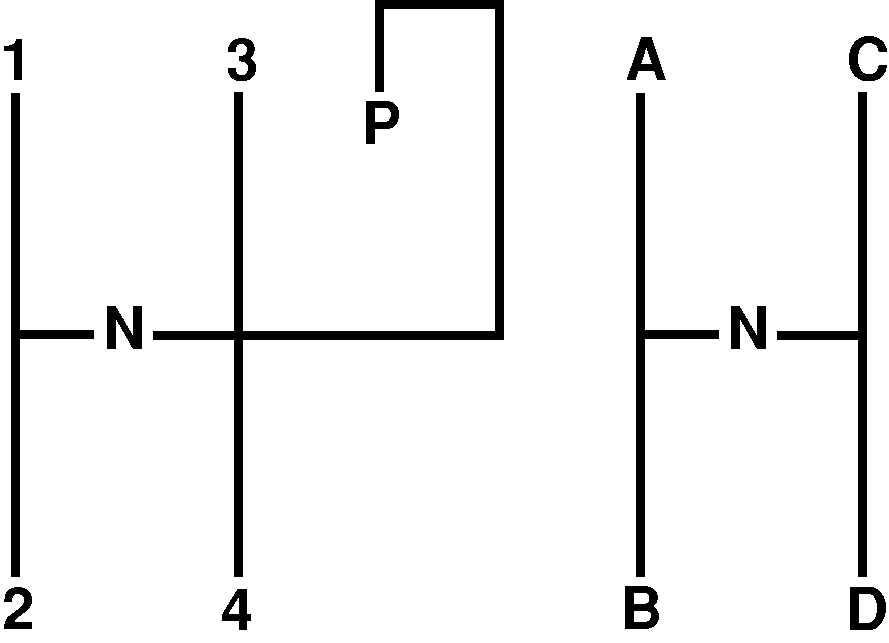

Speed shift lever (A) provides four forward and reverse travel speeds (1, 2, 3, 4). Range shift lever (B) provides four forward and reverse speed ranges (A, B, C and D). Reverser lever (C) provides travel direction (forward or reverse). When using range and speed shift levers in different combinations, 16 forward and reverse speeds are available. NOTE: Slow speed gearing (creeper) is available on separate lever. Range shift lever must be in neutral position to shift into creeper. 1. When starting tractor, put reverser lever in neutral and depress clutch pedal.NOTE: If reverser lever (C) is not in NEUTRAL, and/or speed shift lever (A) is in position except NEUTRAL or PARK, and/or range shift lever (B) is not in NEUTRAL, tractor will not start. Put reverser lever (C), speed shift lever (A) and range shift lever (B) in NEUTRAL to start tractor. While starting tractor, refer to Before Starting the Engine and Start Engine, in Section 50. IMPORTANT: To prevent unnecessary clutch wear, never "ride" the clutch by resting a foot on the pedal. 2. Depress clutch pedal and stop tractor before shifting range shift lever (B). |
|
CAUTION:
Leaving transmission in gear with engine stopped WILL NOT prevent tractor from moving. Put transmission speed shift lever (A) in PARK and electrohydraulic reverser lever in NEUTRAL before dismounting.
AJ20558,00002F0 -19-26AUG09-1/2 |
|
3.
For PowrReverser
™
: Use reverser lever (C) to select forward or reverse travel direction. You can change travel direction without depressing the clutch pedal.
4. Depress clutch pedal when shifting speed. Speed shifts (1, 2, 3, 4) can be made on-the-go, without stopping. Release clutch pedal gradually to take up load smoothly. NOTE: Refer to Gauges and Indicator Lights, in Section 20 for instrument panel indicators. |
|
PowrReverser is a trademark of Deere & Company | AJ20558,00002F0 -19-26AUG09-2/2 |
