Creeper Gear Operation-If Equipped

IMPORTANT: While applying creeper, reverser lever must be placed in direction (Forward or Reverse) after creeper lever and speed shift lever.

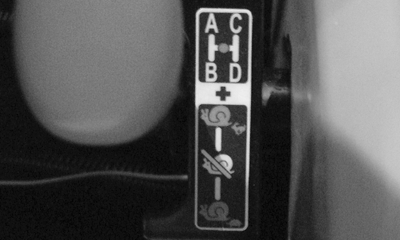

A two-speed creeper gear is available as an option and provides slowest speed range.

Place range shift lever (B) in neutral to operate creeper. Change creeper lever (C) speed selection when at a complete stop.

SyncShuttle Plus™ Transmission: Speed shift lever (A) provides six forward travel speeds and two reverse in the creeper range.

PowrReverser™ Transmission: Speed shift lever (A) provides eight travel speeds in forward and reverse direction in the creeper range.

PowrReverser Plus™ Transmission: Speed shift lever (A) provides 16 forward travel speeds and eight reverse in the creeper range.

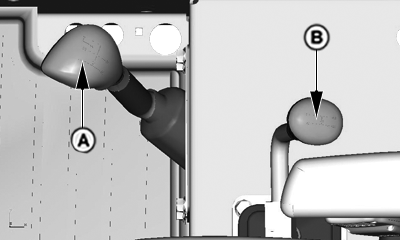

A-Speed shift lever
B-Range shift lever

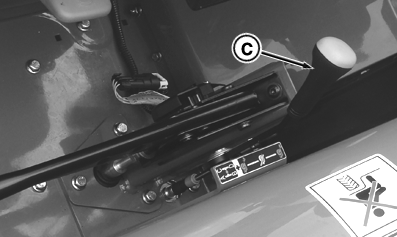

C-Creeper lever

AJ20558,00002F2 -19-31AUG09-1/1
