Stop Tractor

CAUTION: Leaving transmission in gear with engine off WILL NOT prevent tractor from moving.

IMPORTANT: Stop tractor before moving speed shift lever to PARK. Park lock will not engage and transmission may be damaged if tractor is moving.

2. Move speed shift lever to PARK position (P) and range lever into neutral.

3. If equipped with reverser, place reverser lever (C) into NEUTRAL.

4. Lower all equipment to the ground.

5. Put all SCV levers in NEUTRAL.

6. Disengage PTO.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

7. Pull hand throttle (A) back to slow idle position. Allow engine to idle for 2-5 minutes.

CAUTION: Remove key from ignition switch to prevent operation by untrained personnel.

8. Turn key (B) to STOP position and remove from switch.

A-Hand throttle
B-Ignition key

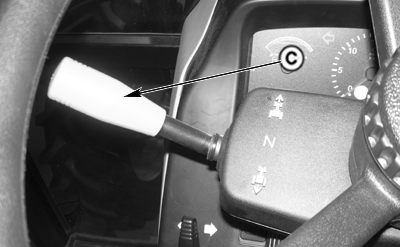

C-Reverser lever

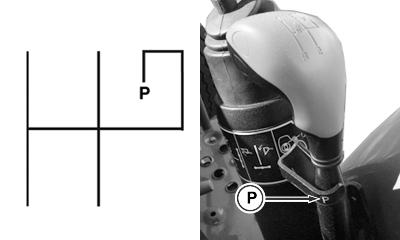

P-Park position

AJ20558,00002F4 -19-31AUG09-1/1
