Mechanical Front-Wheel Drive Operation-with Brake Assist-If Equipped

CAUTION: Mechanical front-wheel drive greatly increases traction, it does not increase the stability of the tractor. With MFWD engaged, the tractor can climb steeper slopes but it does not become more stable. The possibility of a tip-over increases with MFWD. Use extra caution on slopes.

When driving on icy, wet, or graveled surfaces, reduce speed and properly ballast tractor to avoid skidding and loss of steering control. For best control under adverse conditions, engage mechanical front-wheel drive (if equipped).

IMPORTANT: When transporting tractor, use BRAKE ASSIST position, not ON mode continuously.

NOTE: See Front End Ballast, in this Section.

NOTE: MFWD indicator (B) lights whenever front-wheel drive is engaged.

MFWD can be engaged and disengaged in all gears (forward and reverse) during operation and under full load. Switch (A) has two operating positions:

• ON (top half pressed down): MFWD engaged continuously.
• BRAKE ASSIST (bottom half pressed down): MFWD engaged when BOTH brake pedals are depressed at speeds above 5 km/h (3 mph).

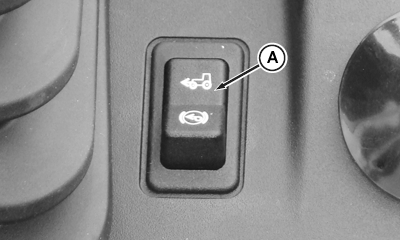

A-MFWD switch with brake assist
B-MFWD indicator

AJ20558,00002F8 -19-01JUL09-1/1
