Transport, Work, Park and Warning Lights

PUPX000164

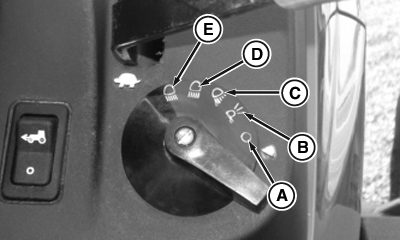

Light switch
PUPX002431

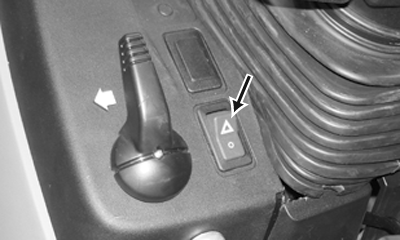

Warning switch


A-Off position
B-Park position


C-Work light position


D-Transport 1 position


E-Transport 2 position

AJ20558,0000302 -19-01JUN09-1/2

causym CAUTION: When on public roads, do not use work lights and ensure light switch is set to Warning, Transport 1, or Transport 2, depending on road conditions.

Bright clear lights can blind or confuse drivers of other vehicles.

IMPORTANT: Adjust, repair, or replace damaged lights immediately.

PULV000520

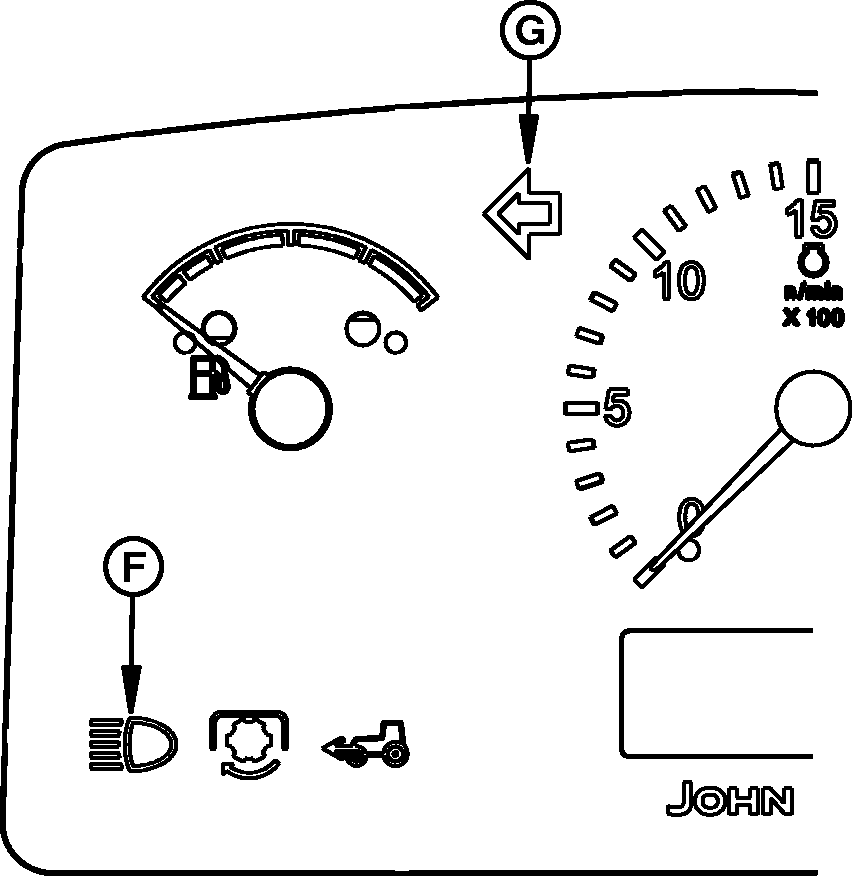

F-High beam indicator light
G-Warning light indicator

Switch Position Use Clearance Lights Tail Lights
Red		 Work Light Headlights
Front Grille		 License Plate Light
A-Off Field, Day Time Off Off Off Off Off
B-Parking On Road, In Traffic, Night Time On Steady On Steady Off Off On Steady
C-Work Light Off Road, Night Time Off Off On On-High Beam Off
D-Transport 1 On Road, No Traffic, Night Time On Steady On Steady Off On-High Beam On Steady
E-Transport 2 On Road, In Traffic, Night Time On Steady On Steady Off On-Low Beam On Steady
