Converting Category II Hitch to Category I

Tractor center link and draft link ends are sized for Category II implement attaching pins.

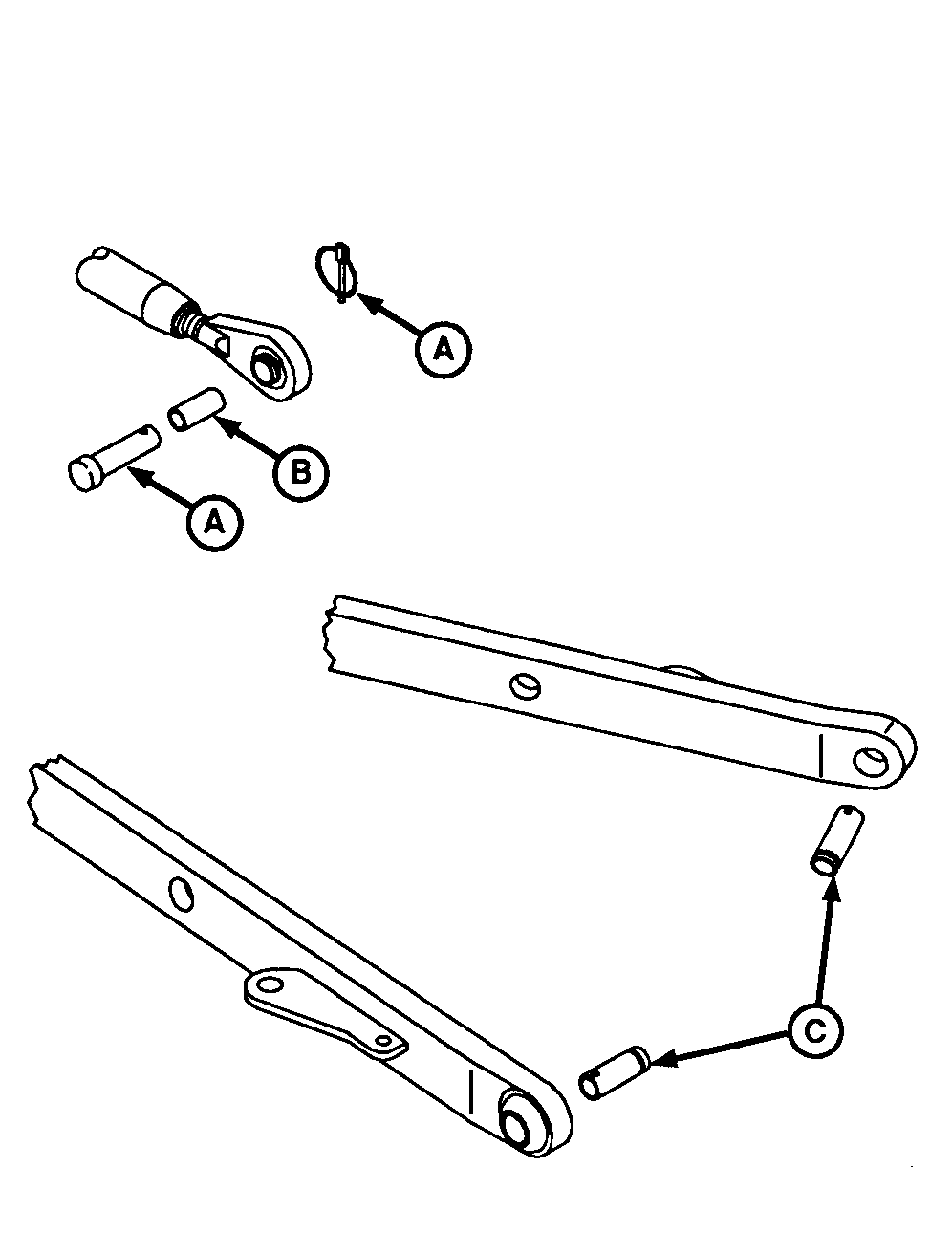

If Category I implements are to be used, the Category II hitch can be converted to Category I by inserting bushing (B) to reduce the size of the center link end and using the smaller pin (A) through the implement mast, and by adding bushings (C) to end of draft links (see your John Deere dealer for parts).

AJ20558,000030D -19-02JUN09-1/1
