OMSU20699: 5085M and 5095M Tractors Operator's Manual, Block File: AJ20558_0000312_19

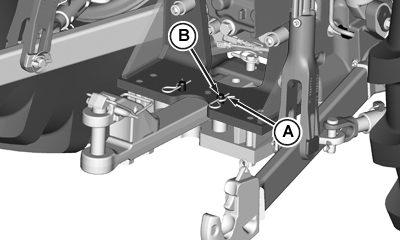

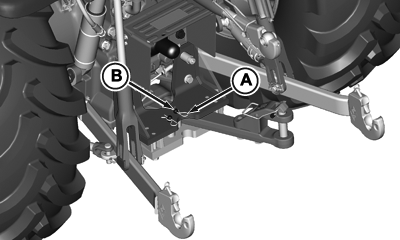

Adjust drawbar length

1. Remove retaining pin (A).

2. Remove drawbar pin (B).

3. Slide drawbar to desired position.

4. Install drawbar pin (B) and insert retaining pin (A) to retain in place.

NOTE: Standard drawbar shown. Heavy duty similar.

A-Retaining pin
B-Drawbar pin

AJ20558,0000312 -19-03JUN09-1/2

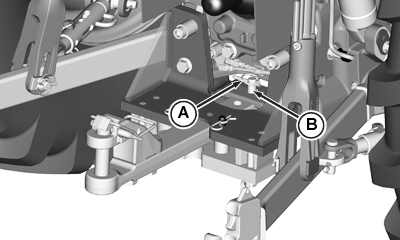

Adjust drawbar offset

1. Remove retaining pin (A).

2. Remove pin (B).

3. Offset drawbar towards left or right.

4. Install pin (B) and insert retaining pin (A) to retain in place.

NOTE: Standard drawbar shown. Heavy duty similar.

A-Retaining pin
B-Drawbar pin

AJ20558,0000312 -19-03JUN09-2/2
