Height-Adjustable Trailer Hitch

IMPORTANT: Use only trailer hitches with a towing eye diameter of 40 mm (1.58 in.)

Trailer hitches with different dimensions may be available in certain countries.

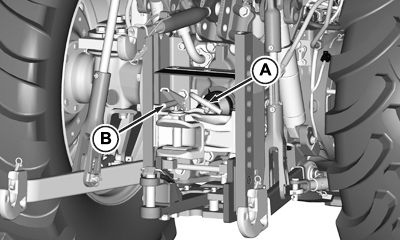

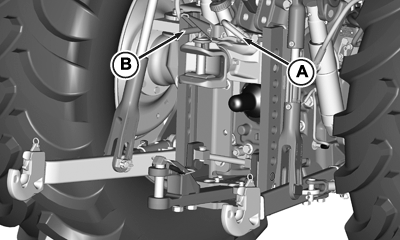

Height of hitch can be adjusted using lever (A).

Maximum permissible static vertical loads and towable loads are stated in Specifications section.

A-Height adjustment lever
B-Actuating handle

AJ20558,0000313 -19-06JUL09-1/1
