Rotary Beacon Light-If Equipped
|
|
|

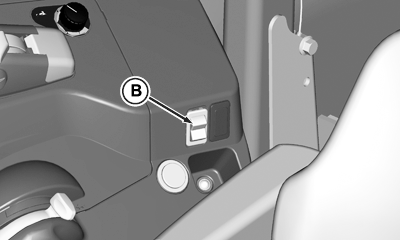

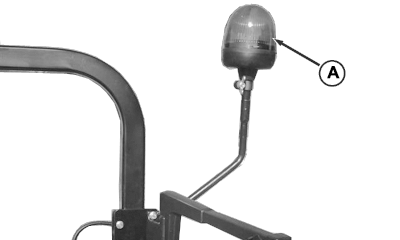

Depress switch (B) to activate beacon light (A). To remove light for storage or clearance: |
1.
Loosen wing nut and lift light from tube.
2. Install cap on tube end to protect light socket. |
AJ20558,0000319 -19-02SEP09-1/1 |
