Mid-Mount SCV Control Lever and Coupler Identification-If Equipped

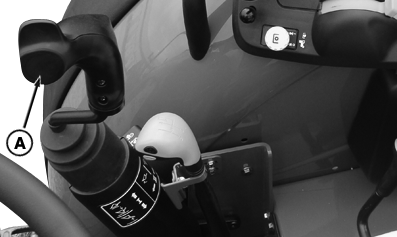

Lever (A) controls oil flow to corresponding Selective Control Valve (SCV) couplers, located at the right side of tractor. Right-hand side couplers are for extension; left-hand side couplers are for retraction.

A-Multifunction Control Lever

HP51992,0000096 -19-31AUG09-1/2

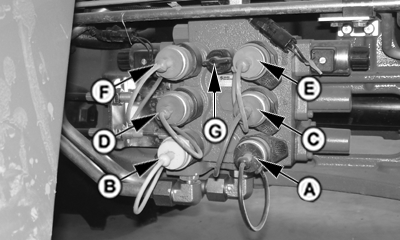

A-Bucket Cylinder-Rod End (Black)
B-Bucket Cylinder-Head End (Yellow)
C-Boom Cylinder-Head End (Blue)
D-Boom Cylinder-Rod End (Red)
E-Third-Function Cylinder-Head End (Orange)
F-Third-Function Cylinder-Rod End (Green)
G-Adjustable Flow Control

HP51992,0000096 -19-31AUG09-2/2
