Operate Foldable ROPS
PULV004561

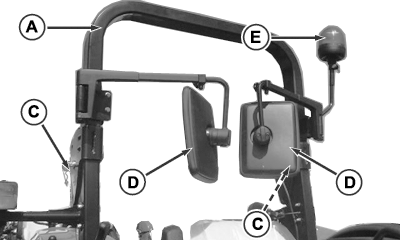

ROPS - Raised position
PULV004562

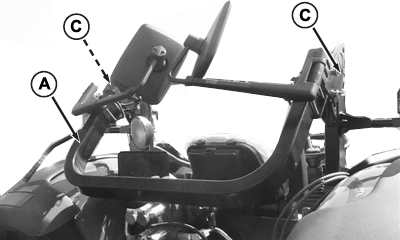

ROPS - Lowered position


A-ROPS crossbar
B-Quick-lock pins
C-Headed pins
D-Rear view mirror
E-Beacon light

causym CAUTION: Make sure all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Replace and tighten mounting cap screws to proper torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or if it is in any way altered by welding, bending, drilling or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be manufacturer approved.

Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS folded (for example, to enter a low building) drive with extreme caution and DO NOT use seat belt.

Lift the ROPS up again and pin in vertical position as soon as the tractor is operated under normal conditions.

Lower ROPS Crossbar (A):

1. Fold rear view mirror (D) inwards.

NOTE: ROPS crossbar will not fold completely with beacon light installed.

2. Remove beacon light (E), if equipped.

PUPX000149

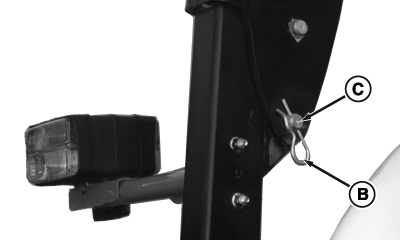

ROPS pin

SA61034,0000130 -19-01JUL09-1/2

3. Remove quick-lock pins (B) and headed pins (C).

4. Lower crossbar (A) of ROPS onto stops.

5. Reinstall pins (C and B) into holes in ROPS to lock crossbar down.

Raise ROPS Crossbar (A):

1. Remove headed pins (C) and quick-lock pins (B).

2. Lift crossbar (A) of ROPS to vertical position.

3. Reinstall pins (C and B) into holes in ROPS to lock in position.

SA61034,0000130 -19-01JUL09-2/2
