Adjust Steering Wheel Tilt and Height

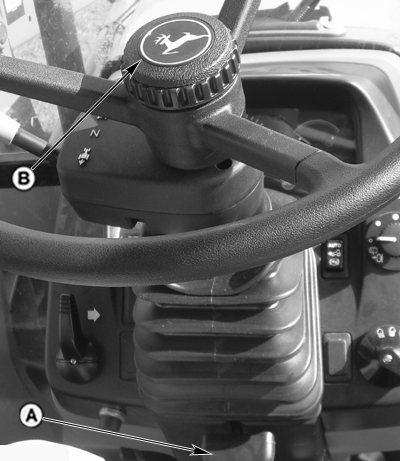

Tilt: Lift lever (A) and move steering column to desired angle.

Telescoping: Loosen telescope release ring (B) and adjust steering wheel to desired height. Tighten ring to lock into position.

A-Steering Wheel Tilt Lever
B-Steering Wheel Telescope Release Ring

SH20560,0000075 -19-26AUG09-1/1
