Converting Category II Hitch to Category I

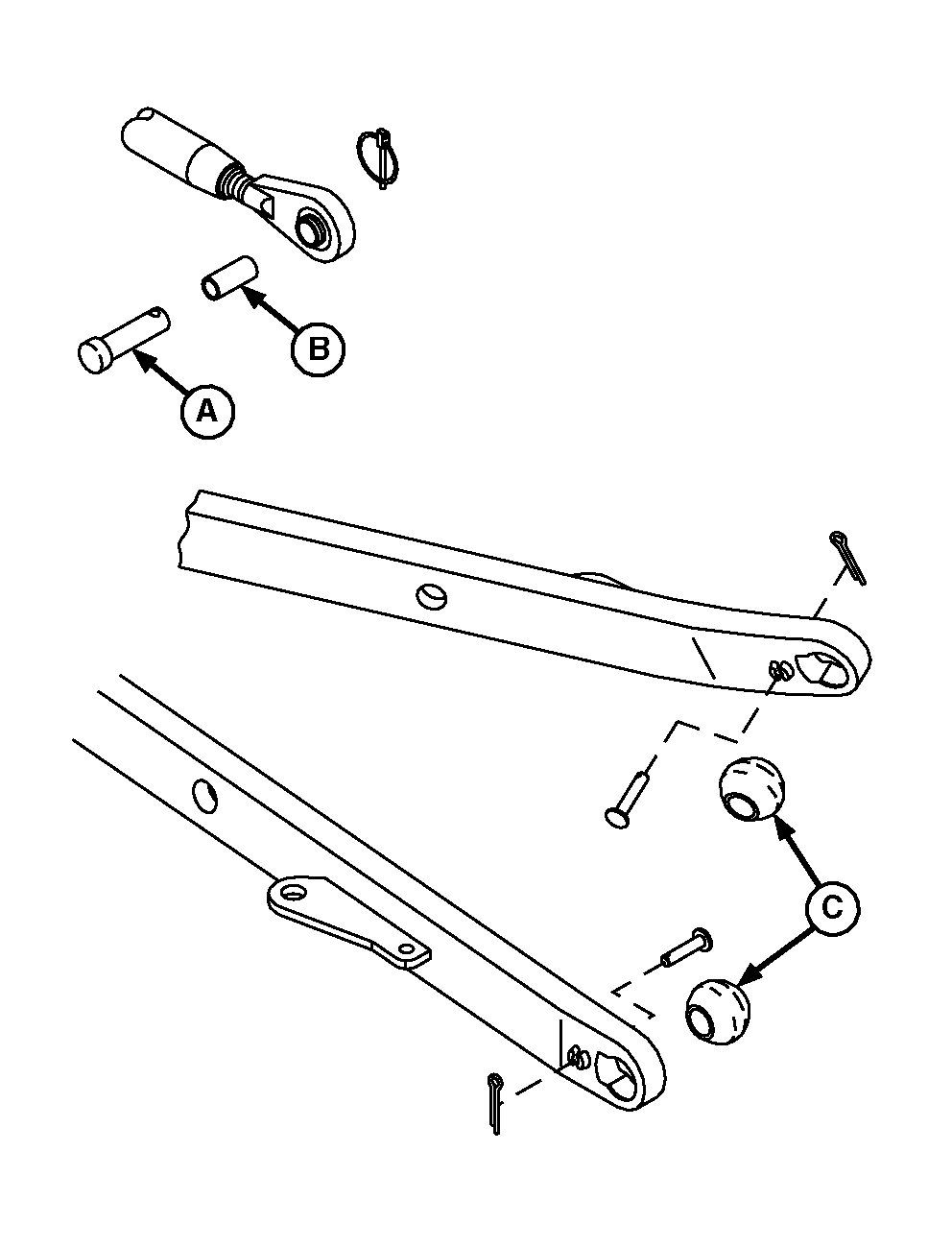

LV844A-UN-21JUL95

Fixed Draft Links Shown

A - Mast pin

B - Bushing

C - Balls

Tractor center link and draft link ends are sized for Category II implement attaching pins.

If Category I implements are to be use, Category II hitch can be converted as follows:

• Insert bushing (B) to reduce diameter of center link end. Smaller implement mast pin (A) is also needed when bushing is installed.
• Replace balls (C) in end of draft links.

See your John Deere dealer for parts.
