Positioning Center Link

P7484-UN-17OCT00

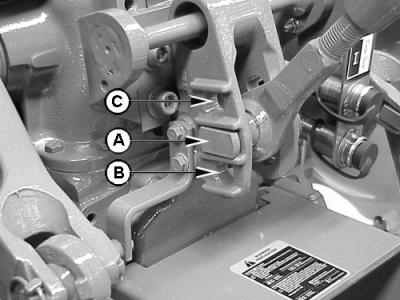

A - Hole

B - Hole

C - Hole

The center link attaching bracket has holes which allow three different positions for attaching the center link. The position effects the draft sensing sensitivity.

Move the center link attachment to upper holes (A) or (C) if:

• Excessive hitch activity or hunting occurs in draft control operation.
• The rear of the implement raises too much when lifted. The implement weight which can be lifted is reduced slightly with the center link attachment in the lower holes.
• The draft control lever range is too small.

Move the center link attachment to lower holes (A) or (B) if:

• The Hitch seems unresponsive in draft control operation and allows the engine speed to drop too far before raising the rockshaft.
• The rear of the implement droops and drags the ground as the implement is lifted.

NOTE: Implements with Category I mast height 457 mm (18 in.) will normally use the lower two attaching holes and implement with Category II mast height 483 mm (19 in.) will use the upper two holes.
