Adjusting Hitch Side Sway

P7751-UN-11JUL01

M46398-UN-31JAN92

A - Hole

B - Hole

C - Hole

D - Jam nut

NOTE: Check implement operator's manual for instruction on whether to allow side sway.

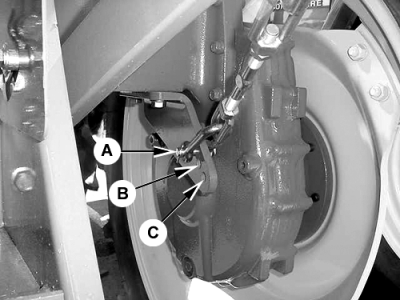

Use the upper hole (A) on the axle bracket when side-to-side movement (sway) is not desired.

The two lower holes (B) and (C) are located below the front draft link pivot so that the sway chains will tighten as the implement is raised end loosened, allowing side-to-side movement, when the implement is lowered. Use holes (B) or (C) for greater side sway for implements requiring side-to-side movement only in the lower position.

Implement side sway should be adjusted when the rockshaft is raised for transport by loosening the jam nut on the threaded link (D) and turning the center rod to increase or decrease the length of chain.

NOTE: Use spring or rubber strap to keep unused links out of rear tires when draft links are not attached to implement.

IMPORTANT: DO NOT shorten chains so short that they do not allow hitch to be raised completely. If chain prevents hitch from raising, hydraulic relief valve will open, causing excessive oil heating or pump damage.
