Adjusting Rockshaft Control Lever Friction

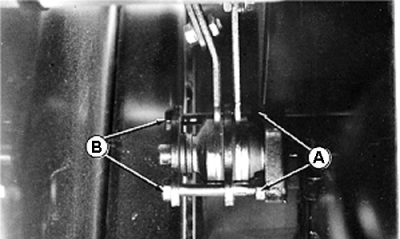

P7491-UN-19OCT00

A - Jam nuts

B - Adjusting bolts

If rockshaft position control lever or draft control lever do not stay in set position, increases lever friction by loosing the two jam nuts (A), tightening the two adjusting bolts (B) equally until the proper friction is obtained. Retighten jam nuts (A) after the adjustment is complete.
