Adjusting Cylinder Stop

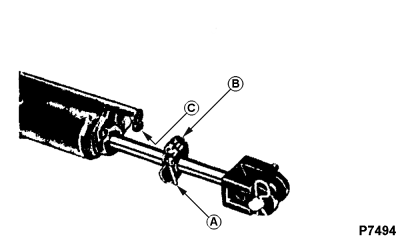

P7494-UN-19OCT00

A - Lever

B - Adjustable stop

C - Stop rod arm

Working stroke of remote cylinder is adjustable. Cylinder retracts only until contacts movable stop, then stops automatically.

1. Lift lever (A).

2. Slide adjustable stop (B) to desired position.

3. Push lever down firmly. Be sure lever will not contact stop rod arm (C).

IMPORTANT: Be sure stop clamps securely on rod. If it does not, lift lever and rotate it clockwise, then push it down firmly.
