Adjusting Drawbar Length

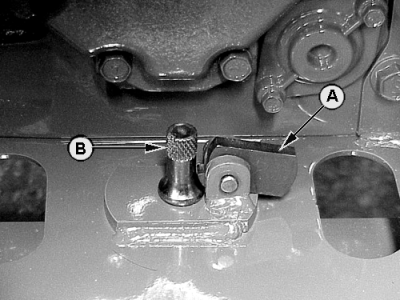

P7495-UN-19OCT00

A - Latch

B - Drawbar pin

Lift drawbar pin retaining latch (A). Remove drawbar pin (B). Slide drawbar to desired position. Install drawbar pin and rotate latch to secure drawbar pin.
