Power Beyond Connections

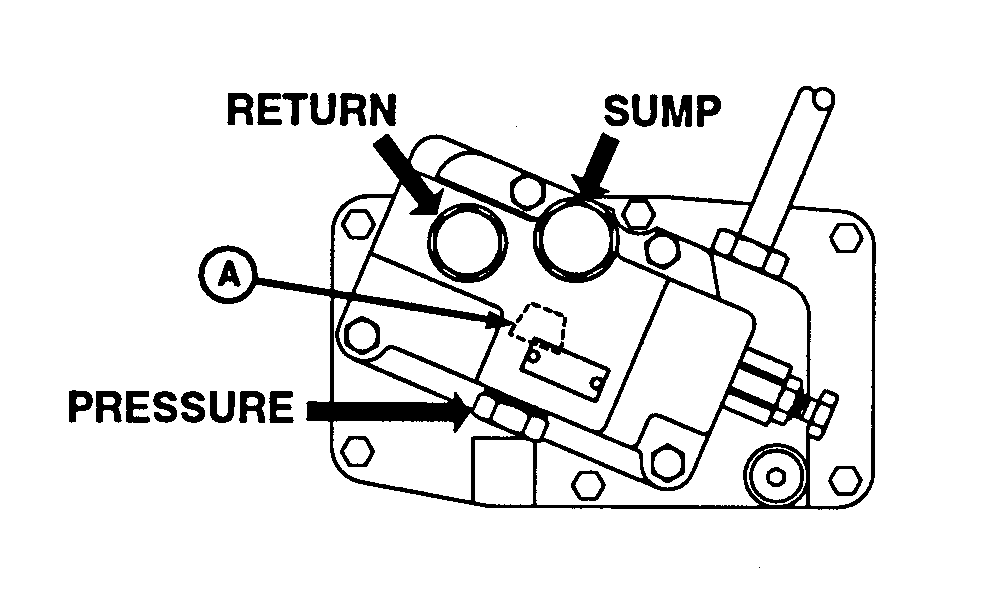

LV605-19-22APR94

One SCV or No SCV

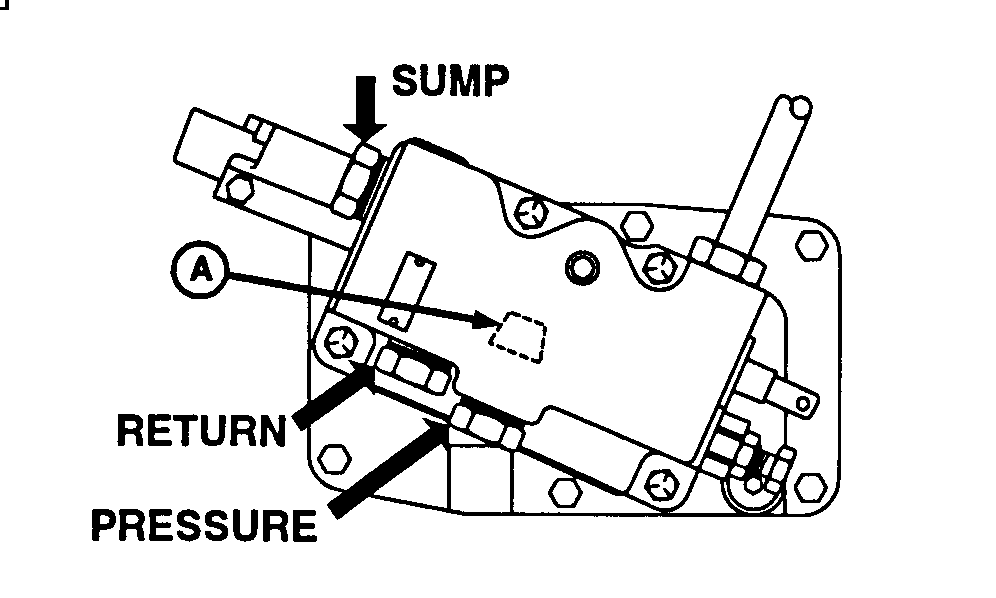

LV606-19-22APR94

Two SCV

A - Plug

The SCV and rockshaft valve stack can be adapted to provide for remotely connecting hydraulic functions to the Tractor hydraulic system. Your John Deere dealer can supply parts to provide port connections and divert the neutral flow using plug (A).

Power beyond connections must be used when operating a hydraulic orbital motor with the Tractor hydraulic system. If hydraulic orbital motors are used without power beyond connections, the hydraulic oil will overheat.
