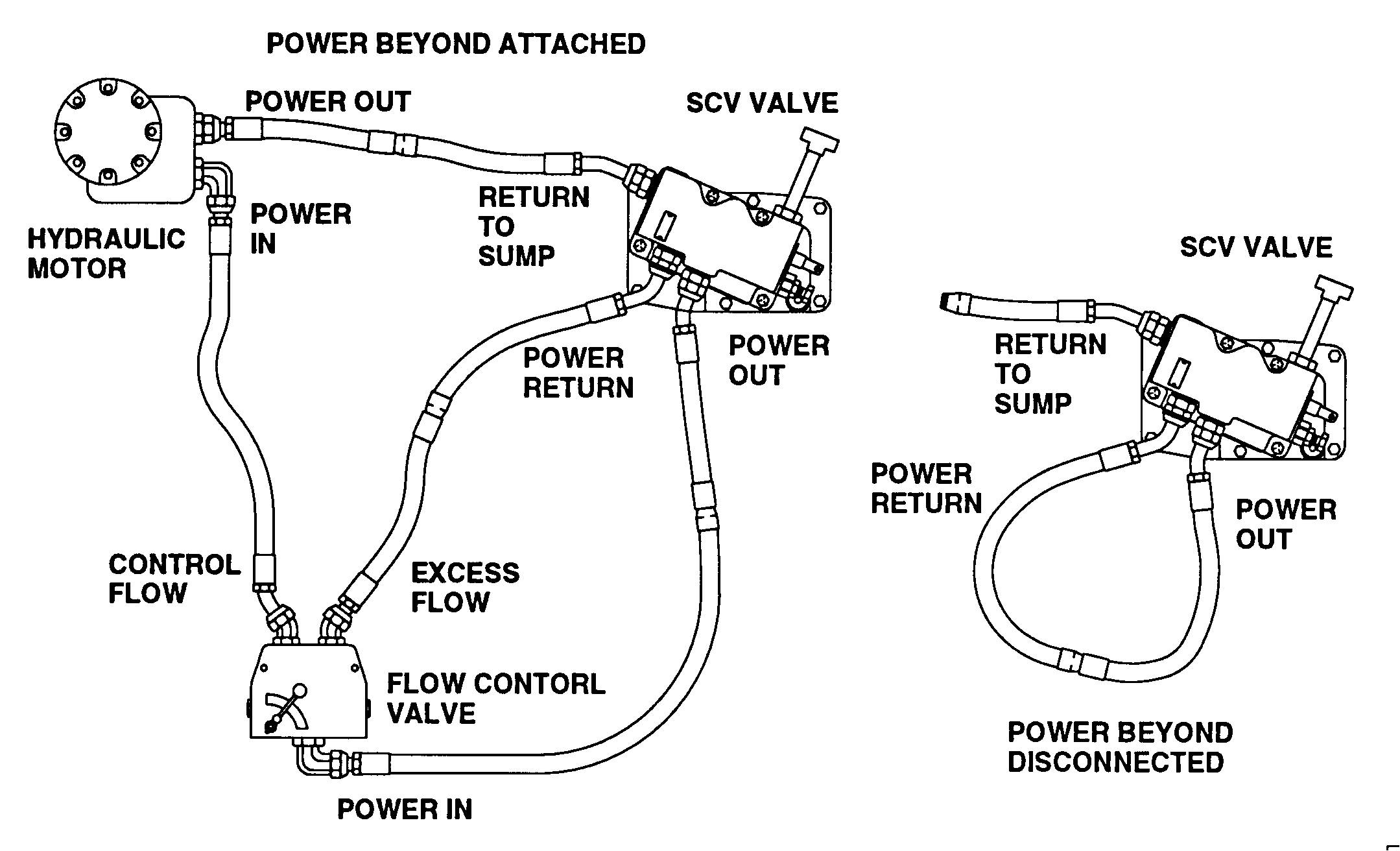

Power Beyond Attached

LV607-19-09MAY94

Be sure hydraulic functions to be connected are with open center systems of 43.2 L/m (11.4 gpm) and 18995 kPa (190 bar) (2755 psi) capacity. The maximum hydraulic system pressure will be limited by the Tractor main relief valves and can not be increased by remotely connected valves (external relief valve). External relief valve is not required unless a lower relief pressure is required.
