Service Daily Before Start-Up

1.

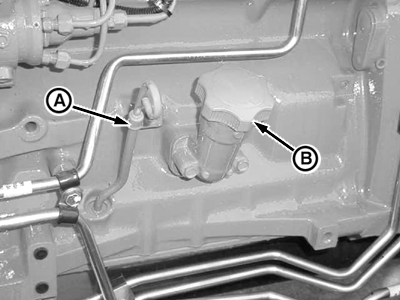

   P13389-UN-17DEC04

   A - Dipstick

   B - Filler hole

   Check the engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and locate oil level.

   Safe operating range is between two marks on dipstick. Do not operate engine when oil level is below lower mark on dipstick. Add seasonal viscosity grade oil through filler hole (B). (See Fuel, Lubricants, and Coolant section for oil specifications.)

---




2.

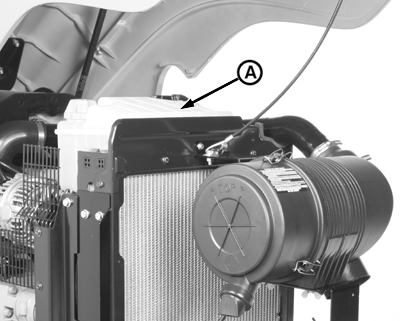

   P13666-UN-04AUG05

   5425 OOS Tractor is shown

   A - Recovery tank

   Check coolant level in recovery tank (A). If engine is COOL and level is below “LOW” mark, add coolant to recovery tank to bring level to “LOW” mark.

   NOTE: Coolant level with a cold engine should be at the ”LOW” mark. A Tractor at operating temperature should have a coolant level at the “FULL”mark .

---




3. Lubricate the following items at 10 hours intervals if operating in extremely wet or muddy conditions.

   • Front Axle pivot pin(s)
   • Steering spindles
   • Tie rod ends



   Use multipurpose grease. (See Fuel, Lubricants, and Coolant section for grease specifications).

   For detail information see Lubricants and Maintenance section.
