Tractor Controls — Right-Hand Side Panel (IOOS)

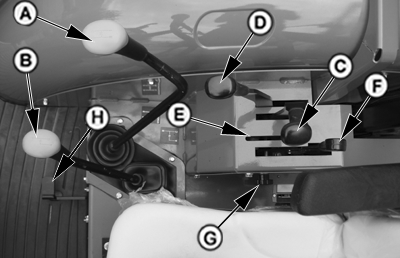

PUM2002-UN-09JAN07

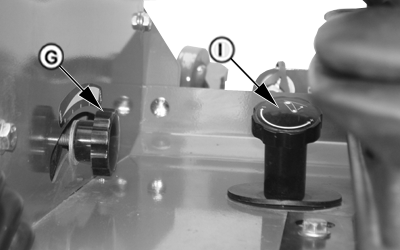

PUM2003-UN-09JAN07

A - Gear Shift Lever

B - Range Shift Lever

C - First Selective Control Valve (SCV) Lever

D - Second Selective Control Valve (SCV) Lever

E - Position Control Stop

F - Rockshaft Position Control Lever

G - Rockshaft Draft Control Knob

H - Differential Lock Pedal

I - Rockshaft Rate-of-Drop Knob
