Operating Beacon Light — If Equipped

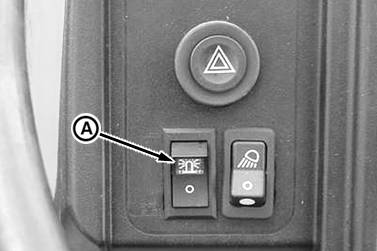

P13161-UN-31AUG04

OOS Shown; IOOS Similar

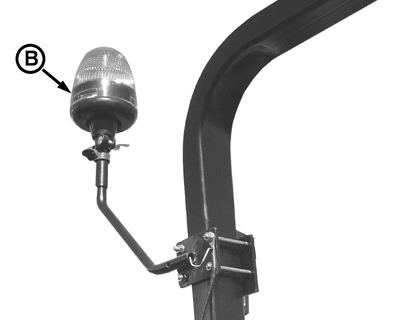

P13050-UN-19MAY04

OOS Shown; IOOS Similar

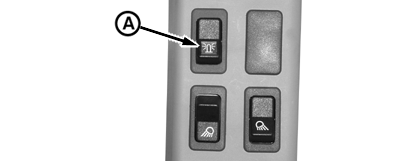

P13903-UN-21DEC05

Beacon Light Switch—Cab

P13904-UN-21DEC05

Beacon Light–Cab

A - Beacon Light Switch

B - Beacon Light

Depress switch (A) to activate light (B).

To remove light for storage or clearance:

1. Loosen wing nut and lift light from tube.

2. Install cap on tube end to protect light socket.
