Operating Collar Shift or Synchronized Transmissions

P11114-UN-18DEC01

OOS Shown; IOOS and Cab Similar

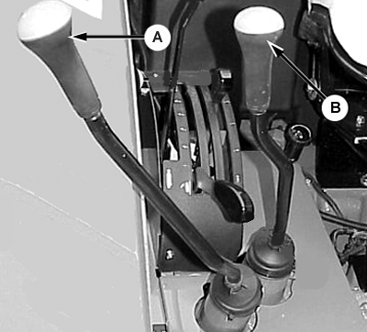

A - Gear shift lever

B - Range shift lever

NOTE: In some models range shift lever is located in left-side panel.

Gear shift lever (A) provides three forward travel speeds and one reverse.

Shift lever (B) provides three speed ranges, A, B, and C.

Slow speed gearing (Creeper) is available as an option, providing for a fourth speed range. See “Creeper Gear Operation” for further information.

Using range and gear shift levers in different combinations, nine forward speeds can be obtained. Reverse can be obtained in all speed ranges.

If not Equipped with Park Brake. Gear shift must be in park position “P” for the engine to be started.

If Equipped with Park Brake. Gear shift must be in neutral position “N” for the engine to be started.
