Shifting Transmission—Synchronized

P13716B-UN-09AUG05

OOS Shown; IOOS and Cab Similar

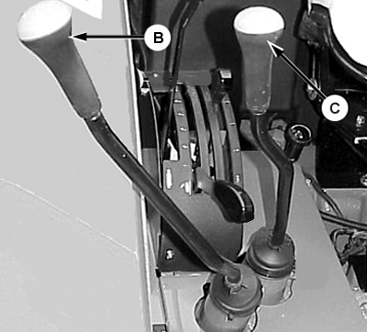

P11115-UN-18DEC01

OOS Shown; IOOS and Cab Similar

A - Clutch pedal

B - Gear shift lever

C - Range shift lever

NOTE: In some models range shift lever is located in left-side panel.

IMPORTANT: To prevent unnecessary wear, never “ride” the clutch by resting a foot on the pedal.

Depress clutch pedal (A) and stop Tractor before shifting the range shift lever (C).

Depress clutch pedal (A) before shifting the gear shift lever (B). Gear shifts (1, 2, 3) and direction shifts (forward, reverse) can be made on-the-go. Release clutch pedal gradually to take up load smoothly.
