Using Brakes

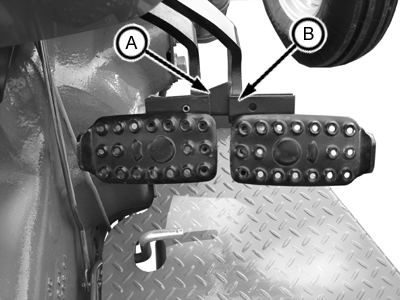

P13716C-UN-09AUG05

OOS Shown; IOOS and Cab Similar

A - Brake pedal bar

B - Brake pedal

CAUTION: Before operating Tractor on a road, lock pedal together (B). Use brake lightly and cautiously at transport speeds.

Use individual brakes to assist in making sharp turns. Disengage brake pedal bar (A) and depress only one brake pedal.

To stop Tractor, depress both brake pedals.

IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

Reduce speed if towed load weighs more than the Tractor and is not equipped with brakes. Avoid hard brake applications. Consult implement operators manual for recommended transport speeds.

Use additional caution when transporting towed loads under adverse conditions, when turning or stopping on inclines.
