Using Differential Lock

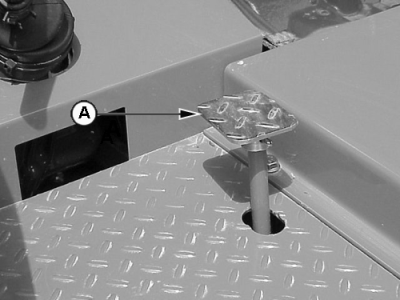

P7482-UN-17OCT00

5725 Tractor (OOS)

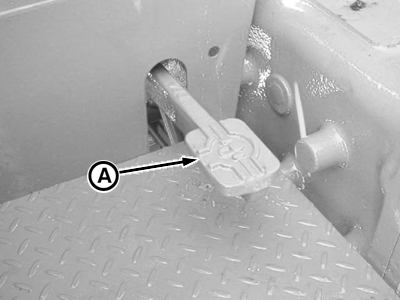

P13065-UN-24MAY04

5425 Tractor (OOS)

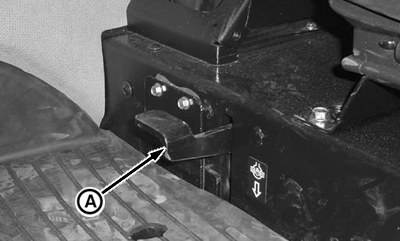

P13924-UN-23DEC05

Cab Shown, IOOS Similar

A - Differential lock

CAUTION: DO NOT operate Tractor at high speed or attempt to turn with differential lock engaged.

IMPORTANT: To prevent damage to drive train, DO NOT engage differential lock when one wheel is spinning and the other is completely stopped.

When one wheel start to lose traction, engage differential lock by depressing pedal down (A).

Unequal traction will keep the lock engaged. When traction equalizes, lock will disengage itself by spring action. If lock does not disengage, depress one brake pedal and then the other.

If tires repeatedly slip, then get traction, then slip again, hold pedal in the engaged position.
