Rockshaft Control Levers—IOOS and Cab

P13928-UN-23DEC05

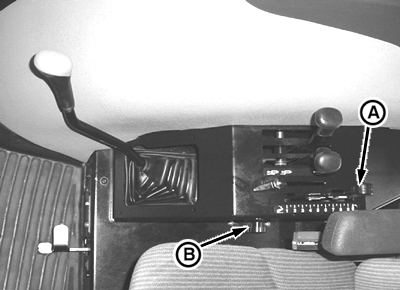

Cab Shown; IOOS Similar

A - Rockshaft position control lever

B - Rockshaft draft control knob

The rockshaft position is controlled the position control lever (A) and the draft control knob (B).

The position control lever (A) raises the hitch when pulled rearward; and lowers the hitch when moved forward. See “Using Rockshaft Position Control” for more information.

The draft control knob (B) controls hitch position relative to draft loads. See “Using Draft Control” for more information.
