Fuel System Components

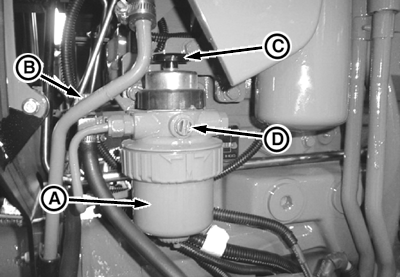

P13418-UN-17DEC04
OOS Shown; IOOS and Cab Similar

P13419-UN-17DEC04
OOS Shown; IOOS and Cab Similar
A - FuelGard™ Fuel Filter
B - Fuel Shut-off Valve
C - Priming Pump
D - Bleed Screw
E - Electric Fuel Shut-Off
F - Fuel Injection Lines
G - Injection Pump
|
|
GENERIC,0000024-19-20070119
|
|
