Adjusting Seat (Mechanical Suspension)

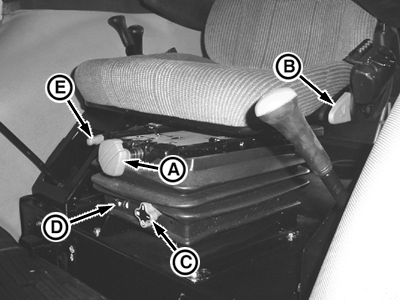

P13909-UN-22DEC05

Cab Shown; IOOS Similar

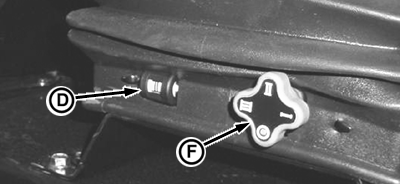

P13910-UN-22DEC05

Cab Shown; IOOS Similar

A - Weight Adjustment Lever

B - Backrest Adjustment Lever

C - Height Adjustment Lever

D - Display Window

E - Forward/Backward Adjustment Lever

F - Indicated Height Setting

CAUTION: To avoid accidents, adjust seat before driving.

NOTE: Use these instructions as a guideline. Since everybody is different, the final settings must be determined by personal preferences. Each operator should make adjustments that suit them best.

The weight adjustment should be performed each time the height adjustment is changed.

Forward or Backward: Lift forward/backward adjustment lever (E), move seat to desired position and release lever to lock in position.

Height: Move height adjustment lever (C), while driver is seated, to one of four possible positions. This sets the limit for how high seat will travel (with no weight on seat). Indicated height setting (F) is closest to the ground.

• III—Highest Position
• II—Medium High Position
• I—Medium Low Position
• O—Lowest Position

NOTE: If height adjustment lever (C) is locked and will not rotate, turn weight adjustment lever (A) to a lighter setting or force seat lower.

Weight: While driver is seated, turn weight adjustment lever (A) clockwise to increase load and counterclockwise to decrease load. When seat is set to weight of operator, indicated height setting (F) appears through display window (D). This adjustment sets seat suspension at its mid-point of travel.

Backrest: Lift backrest adjustment lever (B), move backrest to desired position and release lever to lock in position.
