Adjusting Seat Arm Rests

LV9044-UN-17NOV03

Cab Shown; IOOS Similar

LV9045-UN-17NOV03

Cab Shown; IOOS Similar

A - Plastic Cover

B - Cap Screw

C - Nut

D - Adjustment Slot

E - Cap Screw

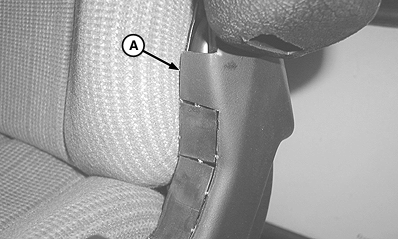

1. Pry plastic cover (A), located between seat back and bottom cushion, away from seat.

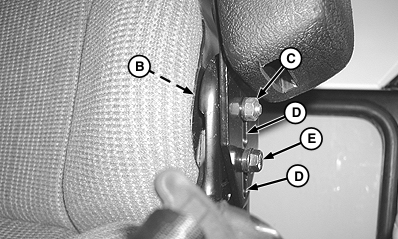

2. Loosen cap screw (B), nut (C) and cap screw (E).

3. Slide arm rest up or down in adjustment slots (D) to desired height and tighten hardware.

4. Repeat this procedure for opposite arm rest.
