Light Switch Positions—OOS and IOOS

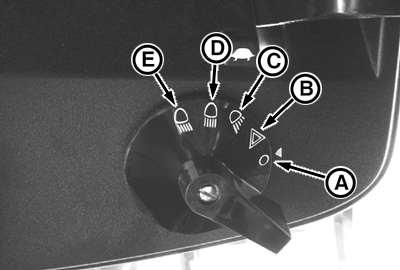

P13058-UN-21MAY04

Switch with Warning Lights Position

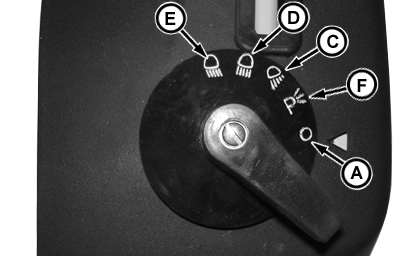

P13769-UN-10AUG05

Switch with Parking Lights Position

A - Lights Off Position

B - Warning Lights Position

C - Worklight Position

D - Bright Headlights Position

E - Dim Headlights Position

F - Parking Lights Position

Tractor light switch has five positions:

Switch Position	Lights on
A	All lights are off Warning/Turn Signal Lamps (using warning light switch or turn signal lever)
B	Clearance Lights Tail Lamps Warning/Turn Signal Lamps (If Equipped)
C	Bright Headlights Warning/Turn Signal Lamps (using warning light switch or turn signal lever) Worklight (using working light switch)
D	Bright Headlights Clearance Lights Tail Lamps Warning/Turn Signal Lamps (using warning light switch or turn signal lever)
E	Dim Headlights Clearance Lights Tail Lamps Warning/Turn Signal Lamps (using warning light switch or turn signal lever)
F	Bright Headlights Parking / Turn Signal Lamps (If Equipped) Worklight (using working light switch)

Position C is for field use only. Do not use on roads. Flood lights might blind or confuse other drivers.

Position D is for highway driving during daytime or nighttime. Switch to dim headlight position before meeting other vehicles.
