Using Plate Light (If equipped)

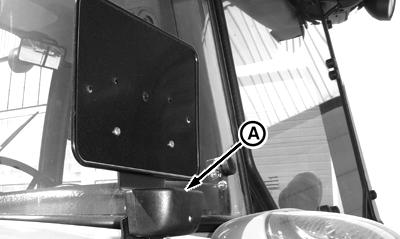

P13907-UN-19NOV08

Plate light - Cab Shown; OOS and IOOS Similar

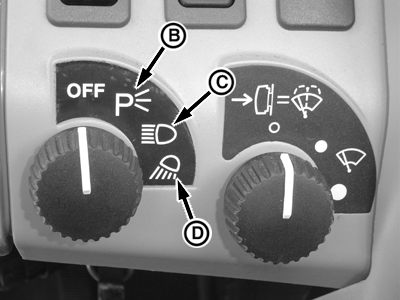

P13915-UN-23DEC05

Light Switch (Cab)

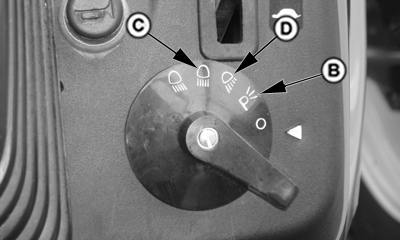

PUM2062-UN-13FEB07

IOOS Shown; OOS Similar.

A - Plate Light

B - Parking Light Position

C - Bright Headlight Position

D - Work Light Position

Plate Light (A) is switched on by either “Parking Light” (B), “Bright Headlight” (C) or “Work Light” (D) light switch position.
