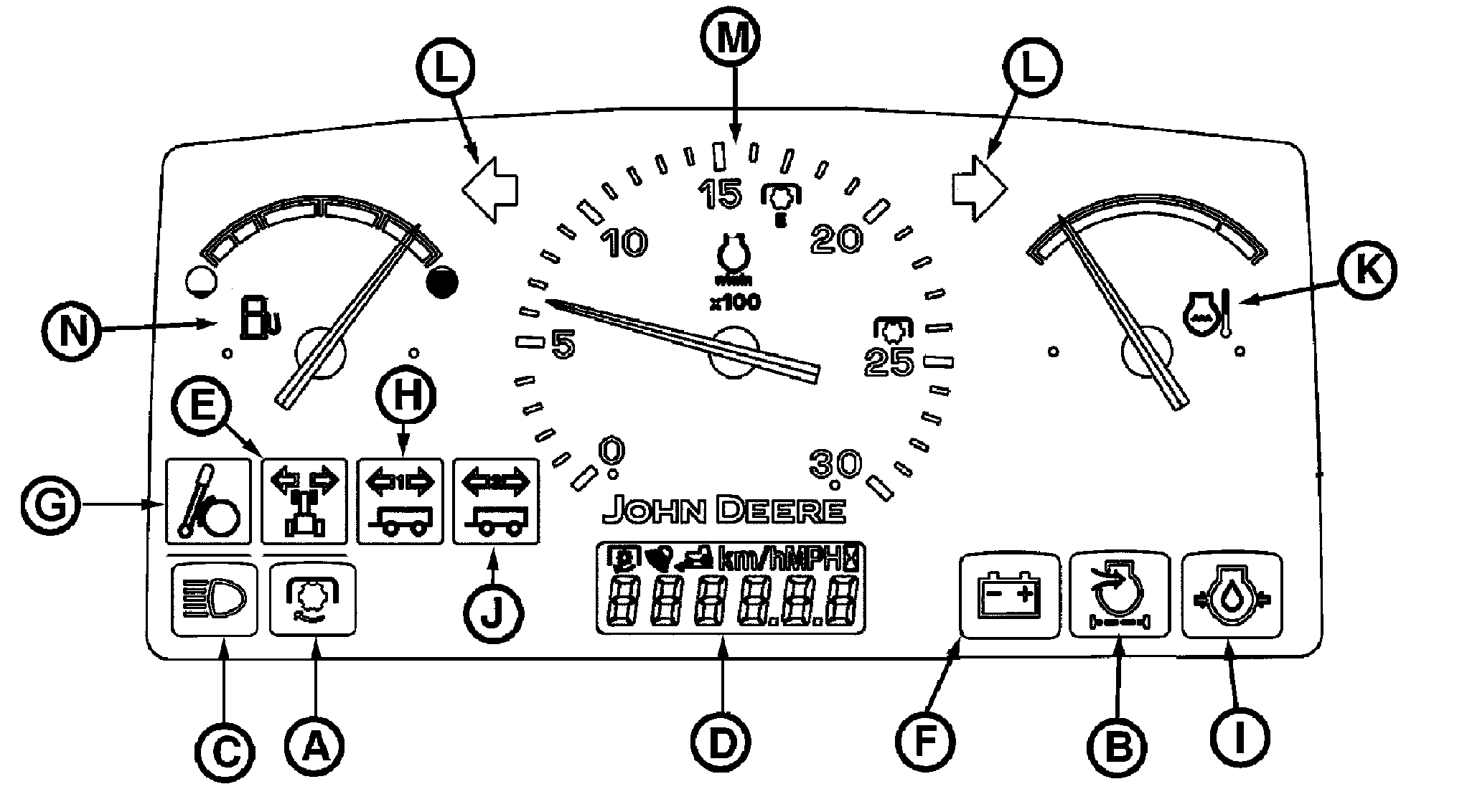

Instrument (Dash) Panel

P13026A-UN-27JUL05

A - PTO Engaged Indicator

B - Air Restriction Indicator

C - High Beam Indicator

D - Hour Meter (LED Digital)

E - Turn Signal Direction Indicator (If equipped)

F - Charging System Indicator

G - Park Brake Indicator (If equipped)

H - Indicator Light for Trailer (If equipped)

I - Engine Oil Pressure

J - Indicator Light for Trailer (If equipped)

K - Coolant Temperature Gauge

L - Turn Signal Direction Indicators

M - Tachometer

N - Fuel Gauge

NOTE: Your tractor may be equipped different.

A — This light comes on when the rear PTO is selected.

B — If air cleaner indicator light glows with engine running, the air cleaner element must be cleaned or replaced.

C — The full beam indicator light will glow whenever the headlights are switched on at full beam.

E — The flashing indicator light for tractor starts flashing when turn-signal or hazard warning lights are switched on.

F — If alternator indicator light glows with engine running, this indicates a defect at alternator. Check alternator cables. If necessary, have alternator checked by your John Deere dealer.

G — The handbrake indicator light glows when handbrake is applied and engine is running.

H — The flashing indicator lights for trailer start flashing when turn-signal or hazard warning lights are switched on.

I — If engine oil pressure warning light glows with engine running, shut off engine and check the level of engine oil.

J — The flashing indicator lights for trailer start flashing when turn-signal or hazard warning lights are switched on.

L — The turn signal direction indicator lights for tractor starts flashing when turn-signal or hazard warning lights are switched on.
