Using Turn Signal—IOOS

PUM2010-UN-09JAN07

PUM2011-UN-09JAN07

PUM2012-UN-09JAN07

P13320A-UN-28JUL05

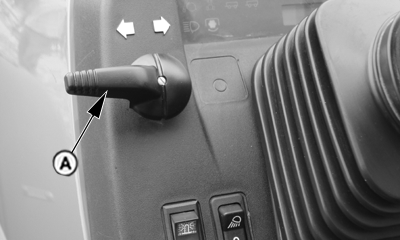

A - Turn Signal Lever

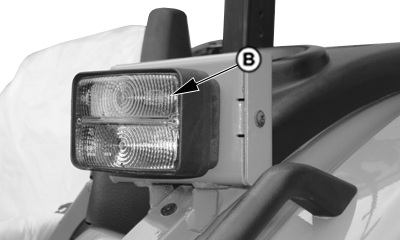

B - Front Warning/Turn Signal Light

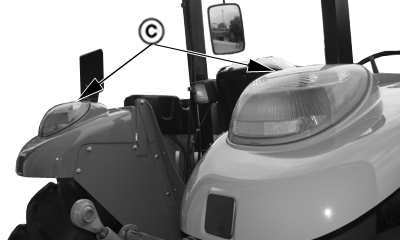

C - Rear Warning/Turn Signal Light

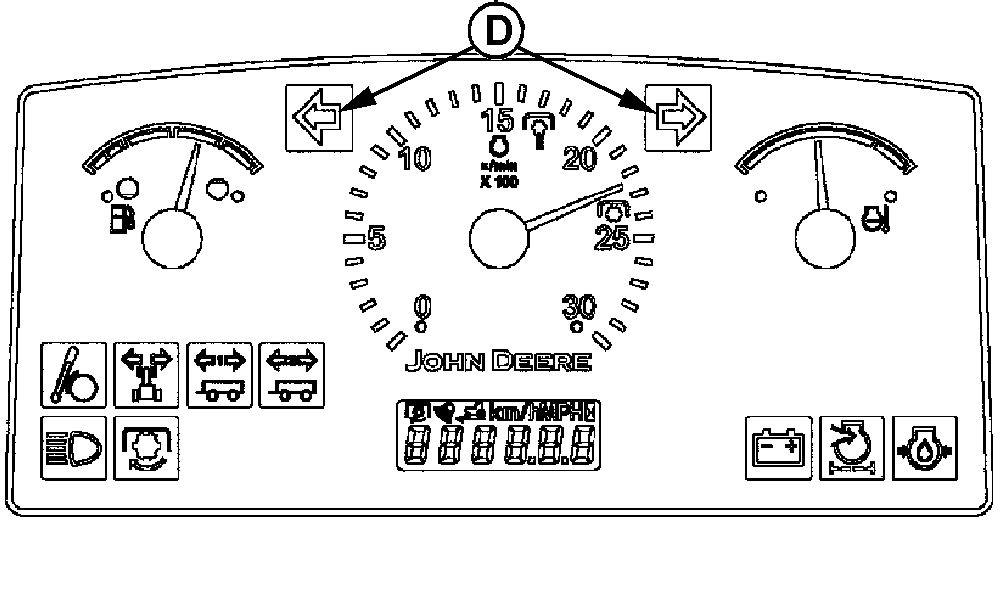

D - Dash Indicator Lights

Move turn signal lever (A) left to indicate left-hand turn or right for right-hand turn.

Indicator lights (D) will flash to signal turn direction

When lever is at the left, the front warning/turn signal light (B) and rear warning/turn signal light (C) on the left-hand side will flash while the right-hand lights glow steady. When turn signal lever is at the right, the front warning/turn signal light (B) and rear warning/turn signal light (C) on the right-hand side will flash while the left-hand lights glow steady.

NOTE: Be sure to manually return lever to center position after turning.
