Using Turn Signal—Cab
(If equipped with warning light rocker switch)

P13898-UN-21DEC05

P13899-UN-21DEC05

Tractor Front View

P13900-UN-21DEC05

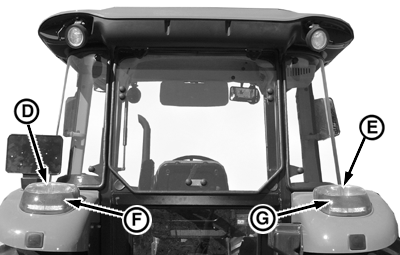

Tractor Rear View

P14383-UN-06SEP07

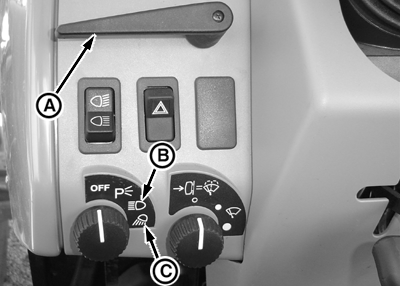

A - Turn Signal Lever

B - Bright Headlight Position

C - Work Light Position

D - Left-Hand Warning Light (2 used)

E - Right-Hand Warning Light (2 used)

F - Left-Hand Tail Light

G - Right-Hand Tail Light

H - Turn Signal Indicators Lights

Move turn signal lever (A) down to indicate left-hand turn or up for right-hand turn. If a right turn is indicated while driving on a public road (switch position B) so that warning lights are already on, front and rear warning lights and tail lights on right-side will blink, while front and rear warning lights and tail lights on left-side shine steadily. The opposite will happen for a left turn: both lights on left side will blink, while both right-side lights shine steadily.

If a turn is ever indicated while not on a public road (switch position C), therefore with warning lights off, tail lights will not come on, and only warning lights will blink indicating the turn.

Right or left-side indicator light (H) on instrument panel will blink according to direction of turn.

NOTE: Be sure to manually return lever to center position after turning.
