Warming Hydraulic System Oil

P13395
P13395-UN-17DEC04

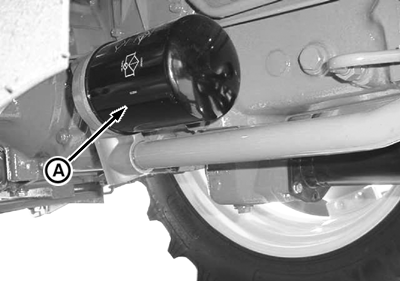

A - Hydraulic system filter

Hydraulic system may be slow to function when Tractor is started in cold weather. This is because cold oil will not flow easily through the filter screen or hydraulic system filter (A).

Steering is slow until system warms up also.

Hydraulic system will function normally when oil warms up.

P13323A
P13323A-UN-28JUL05

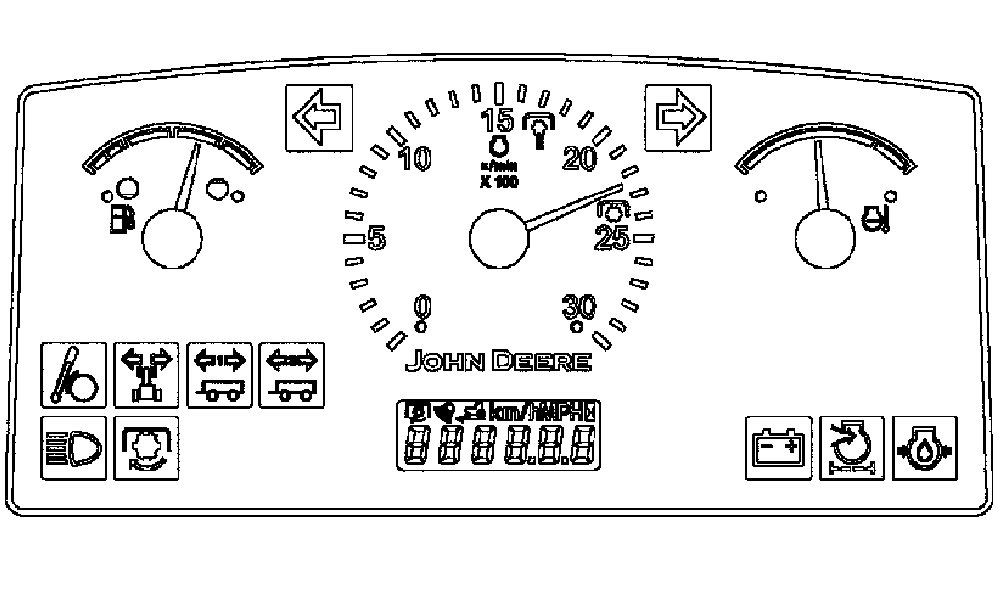

  1. Depress clutch pedal, start engine and idle at about 1000 rpm.

  2. Turn and hold steering wheel in full left or right turn.

    IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed 2 to 3 minutes warm up time.

MK41968,0000220-19-20070910
