Checking Air Restriction Indicator Performance

P13320E-UN-28JUL05

P13226D-UN-01AUG05

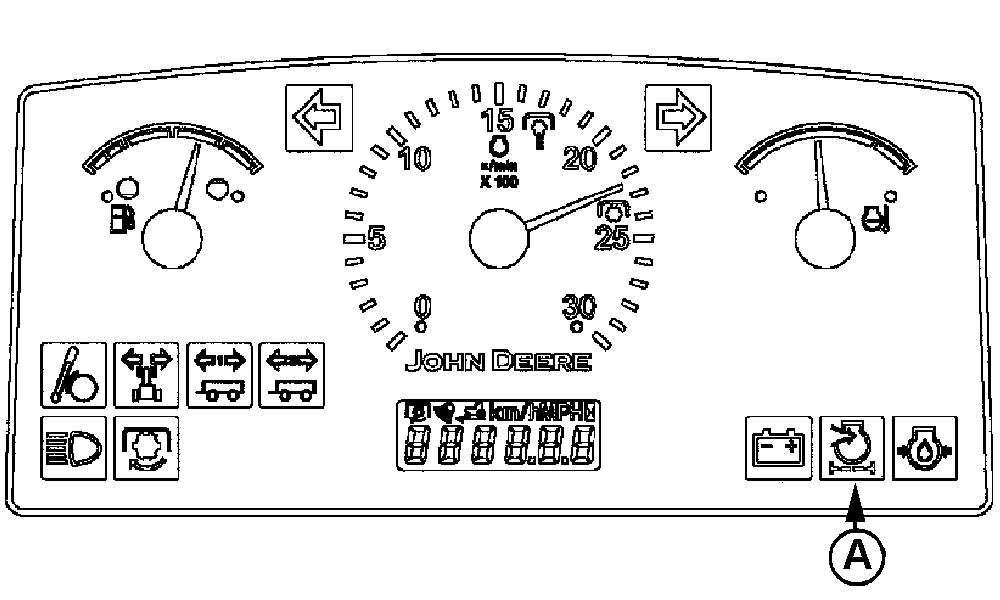

A - Air Restriction Indicator Light

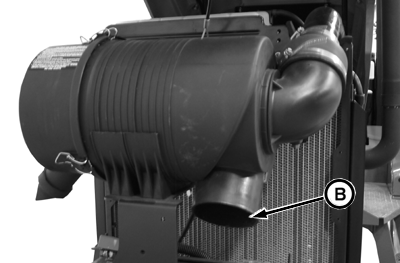

B - Air Intake Tube

Service Interval — Every 500 hours

Check air restriction indicator performance obstructing air intake tube (B) intentionally. Air restriction indicator (A) must light.
