Stopping Tractor with Collar Shift or Synchronized Transmission—OOS

P13028-UN-19MAY04

P13683-UN-26JUL05

P13030-UN-19MAY04

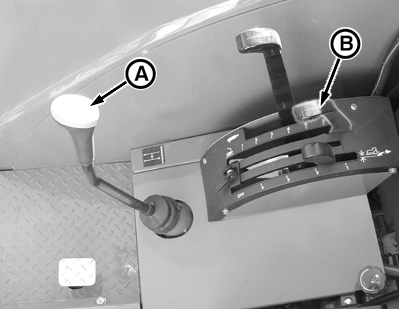

A - Gear Shift Lever

B - Rockshaft Position Control Lever

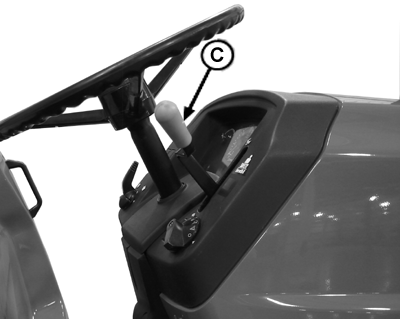

C - Hand Throttle

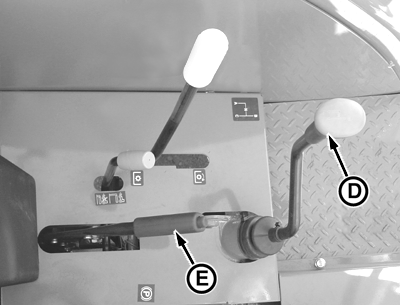

D - Range Shift Lever

E - Park Brake

NOTE: In some models gear and range shift levers are located in right-side panel.

IMPORTANT: Tractor must be stopped before placing gear shift lever in park position “P” (if not equipped with park brake) or neutral position “N” (If Equipped with park brake) . Park pawl will not engage, and transmission may be damaged, if Tractor is moving.

1. If not Equipped with Park Brake. Stop the tractor and place gear shift lever (A) in park “P” and range shift lever (D) in neutral “N” positions.

   If Equipped with Park Brake. Stop the tractor and place gear shift lever (A) and range shift lever (D) in neutral “N” position.

   CAUTION: Always place the gear shift lever in park (P) before dismounting if your tractor is not equipped with park brake. Leaving transmission in gear with engine stopped MAY NOT prevent Tractor from moving.

   CAUTION: Always place the gear shift lever in neutral (N) and engage the park brake before dismounting if your tractor is equipped with park brake. Leaving transmission in gear with engine stopped MAY NOT prevent Tractor from moving.

2. Lower all equipment to ground using rockshaft control lever (B).

3. Pull hand throttle (C) back to slow idle position. Allow engine to idle for one to two minutes.

   IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by over heating or lack of lubrication.

4. Turn key switch to the “OFF” position.

   CAUTION: Remove main switch key to prevent operation by untrained personnel.
