Check Implement-to-Tire Clearance

M47177-UN-31JAN92

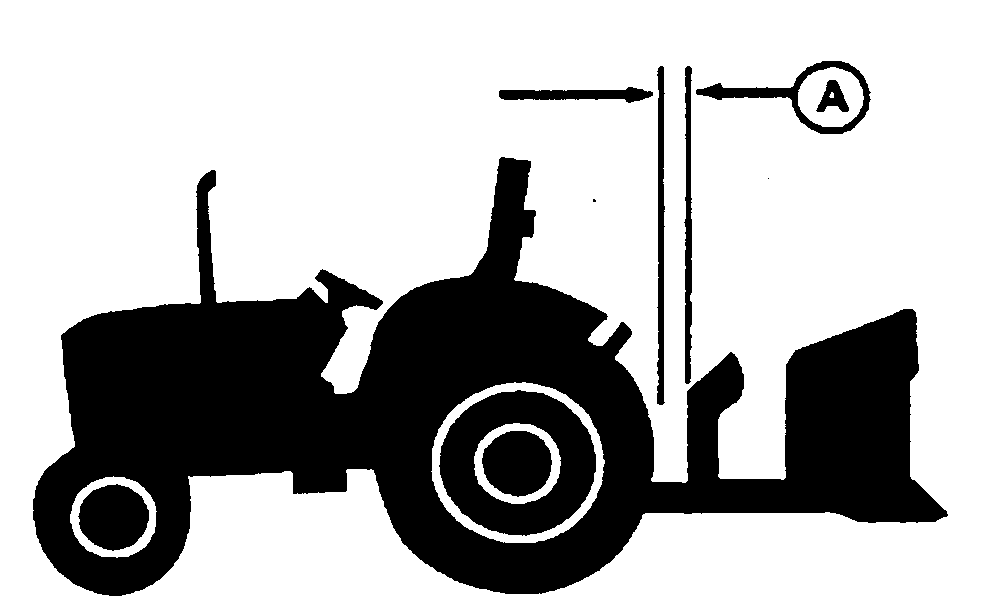

IMPORTANT: Check for adequate clearance (A) between outside diameter of the tire and implement with hitch in raised position.

When large diameter rear tires are installed on a Tractor with a 3-Point Hitch, a quick coupler or similar device is required to provide adequate implement-to-tire clearance.
